LED lighting in a continuous line for safer tunnels
The CONTILED tunnel lighting solution is designed to replace luminaires fitted with fluorescent lamps for continuous line lighting in tunnels and underpasses.
It provides the required lighting levels with significant energy and maintenance savings.
CONTILED improves the visual experience and boosts tunnel safety for motorists, being fully compliant to the most stringent standards.
With robust and recyclable components, this LED tunnel luminaire offers a high level of protection against corrosion, impact and vibrations, guaranteeing long lasting performance.
Accidents and critical incidents are a serious risk in tunnels. CONTILED offers a better visibility, which enables the motorists to be proactive by noticing dangers in due, time and take the necessary actions to avoid them.
As part of the total solution, we can also provide emergency lighting, road marking and fixtures for service tunnels and railways that can complete your tunnel requirements.
The CONTILED tunnel luminaire is equipped with photometric engines composed of modular quantities of LEDs so that they can offer a wide range of lumen packages.
This flexibility ensures that the light distributions are specifically adapted to the real needs of the tunnel to be lit.
Thanks to its robust anodised extruded aluminium profile and glass protector, CONTILED is highly resistant to shocks and corrosion within harsh tunnel environments.
CONTILED has been designed to fulfil the FutureProof concept, which is crucial for a circular economy.
The photometric engine has a high tightness level to protect the LEDs and lenses from coming into contact with the harsh environment of the tunnel and so maintains photometric performance over time. This design enables any version of the luminaire to be easily upgraded to take advantage of potential developments.
Recommanded installation height (m)
Associated control system(s)
Luminaire output flux (lm)
Power consumption (W)
Luminaire efficacy - up to (lm/W)
LED colour temperature
Colour rendering index (CRI)
Housing and finish

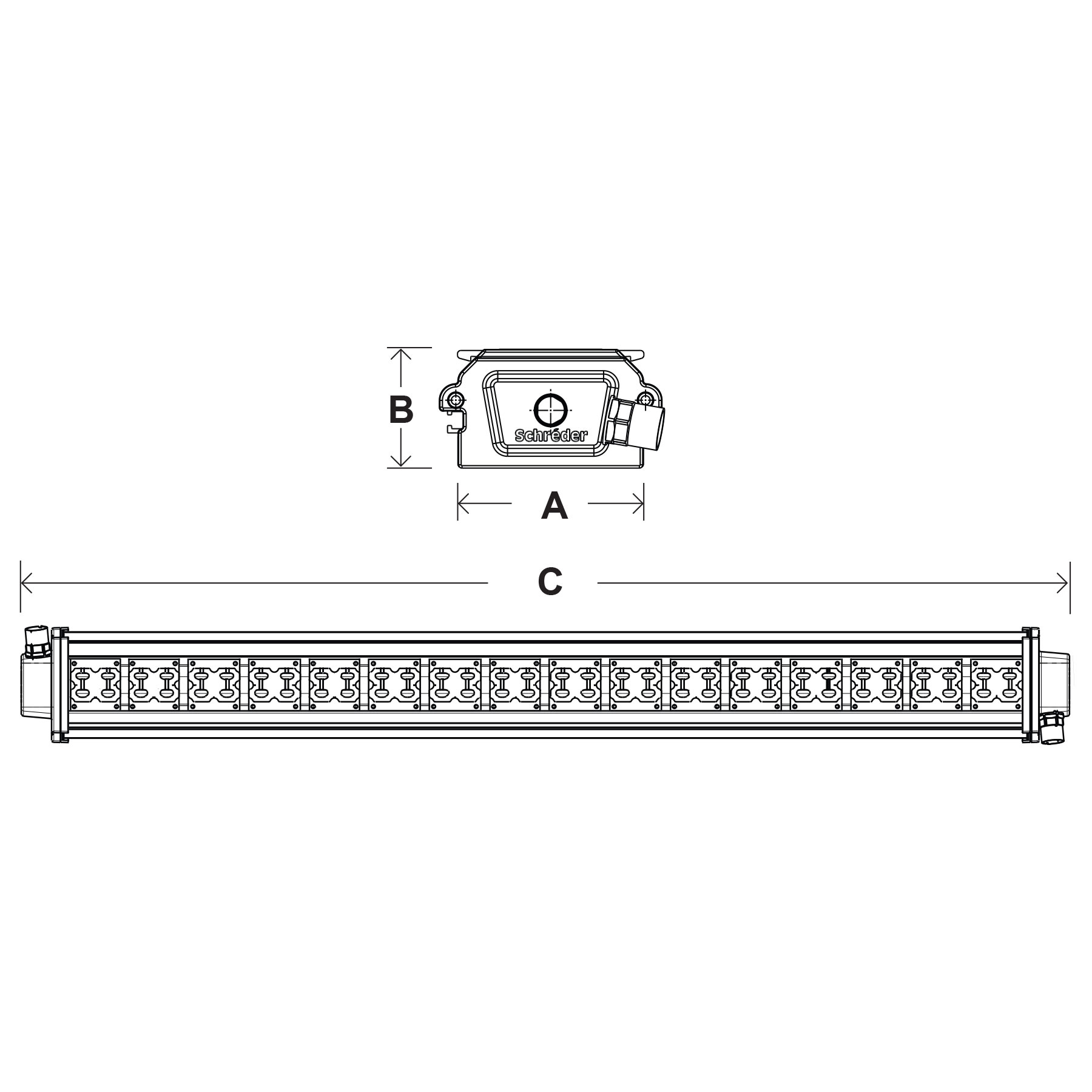

Dimensions and mounting
AxBxC (mm | inch)
Weight (kg | lbs)
Installation and Maintenance
The CONTILED tunnel lighting solution can be mounted in two ways. The connection can be done either via clips at the top of the luminaire or via the grooves on the side.
Accessoires et versions
As an option, CONTILED can be supplied with the following components:
• External power supply - driver box
• Assembly kit for luminaire lateral clamping
• QPD connectors (including a shunt)
